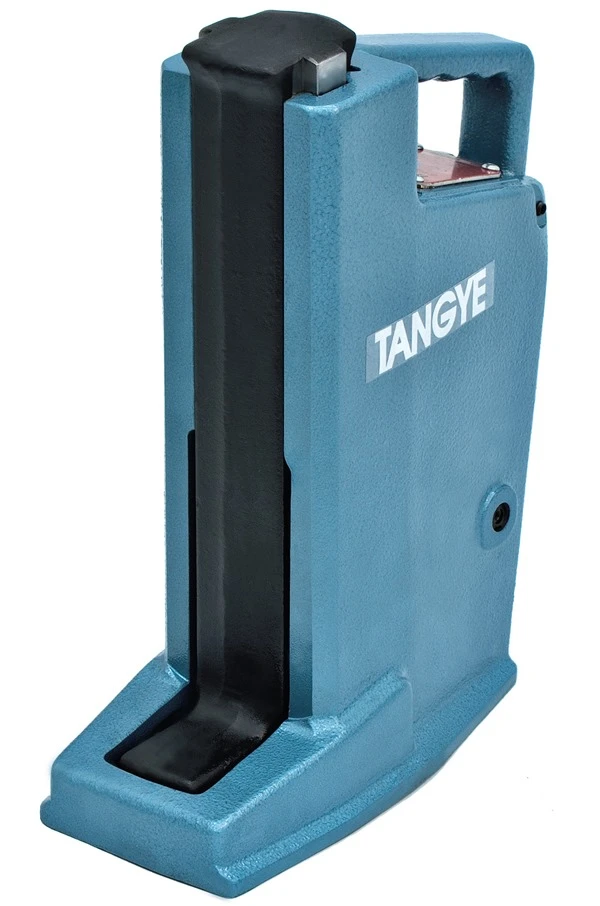

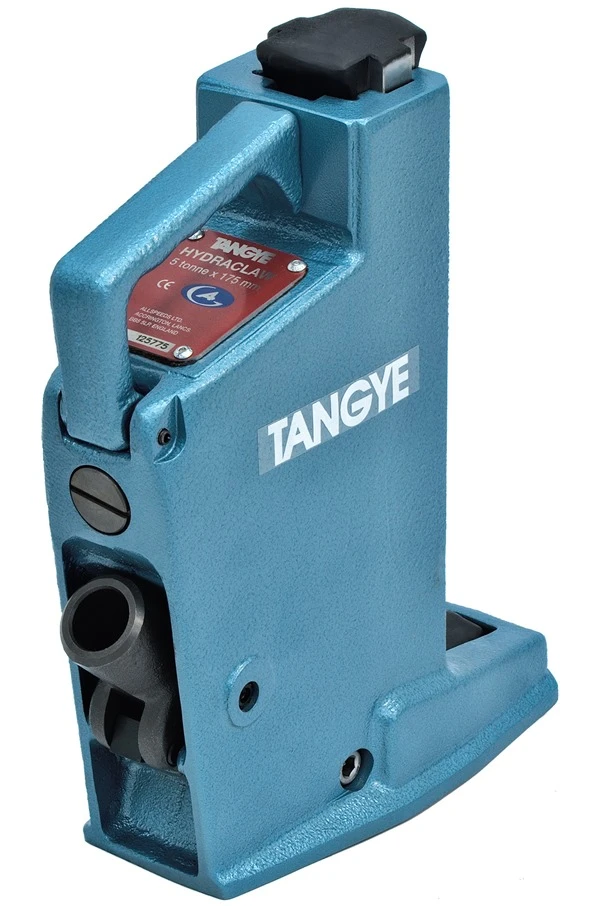

Tangye Hydraclaw 5tonne Hydraulic Toe Jack

: 5tonne capacity on head or toe

High lift: 178mm

: 5.5mm lift per stroke

: substantial base offers stability under load

: horizonal or vertical operation

: positive stop feature prevents over stroking, pressure relief valve prevents overloading

: lifting/lowering controlled smoothly by opearing lever, acceptable lever effort

: 41mm

: jack hydraulics are totally enclosed

: built with steel to withstand rough treatment

Capacity: 5tonne head or toe

Closed height: 325mm

Stroke: 785mm

Base width: 114mm

Base depth: 220mm

Jack weight: 18kg

Lever weight: 3.63kg
