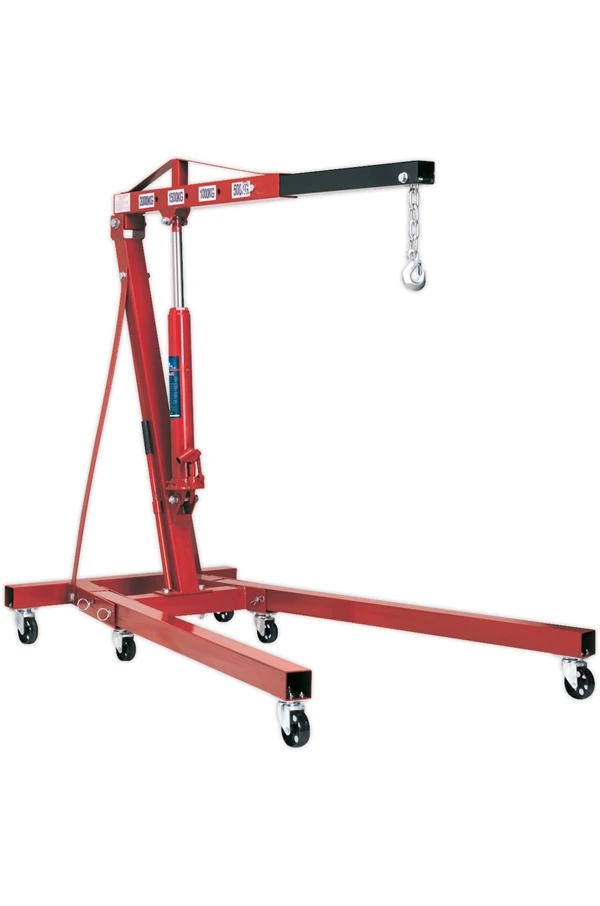

Sealey PH20 2tonne Folding Engine Crane

Lifts 2000kg at 930mm jib extension

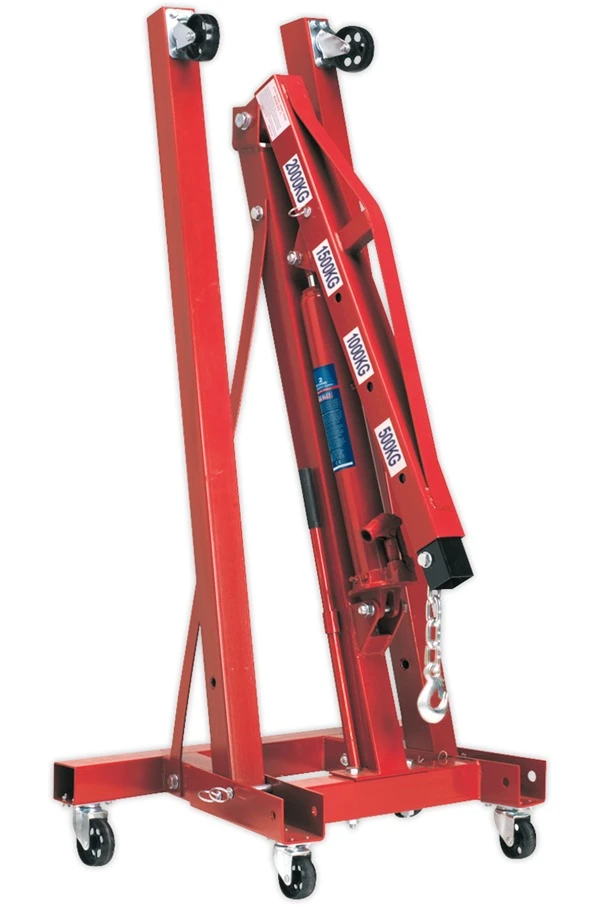

Folds for easy storage, freeing valuable workshop space when not in use

Bottle jack type hydraulic unit for economy

Some self-assembly required

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery

Model: PH20

Height jib down: 1440mm

Height legs folded: 1540mm

Height of frame: 195mm

Length: 1750mm

Rear width: 850mm

Width front frame: 1055mm

Width insert front frame: 915mm

Length of jib position 1: 930mm

Length of jib position 2: 1110mm

Length of jib position 3: 1200mm

Length of jib position 4: 1460mm

Lifting capacity in position 1: 2000kg

Lifting capacity in position 2: 1500kg

Lifting capacity in position 3: 1000kg

Lifting capacity in position 4: 500kg

Max lifting height at jib position 1: 2060mm

Max lifting height at jib position 2: 2190mm

Max lifting height at jib position 3: 2330mm

Max lifting height at jib position 4: 2490mm

Weight: 77kg
