MOD70 Spreader Beam 70tonne 2mtr To 12mtr

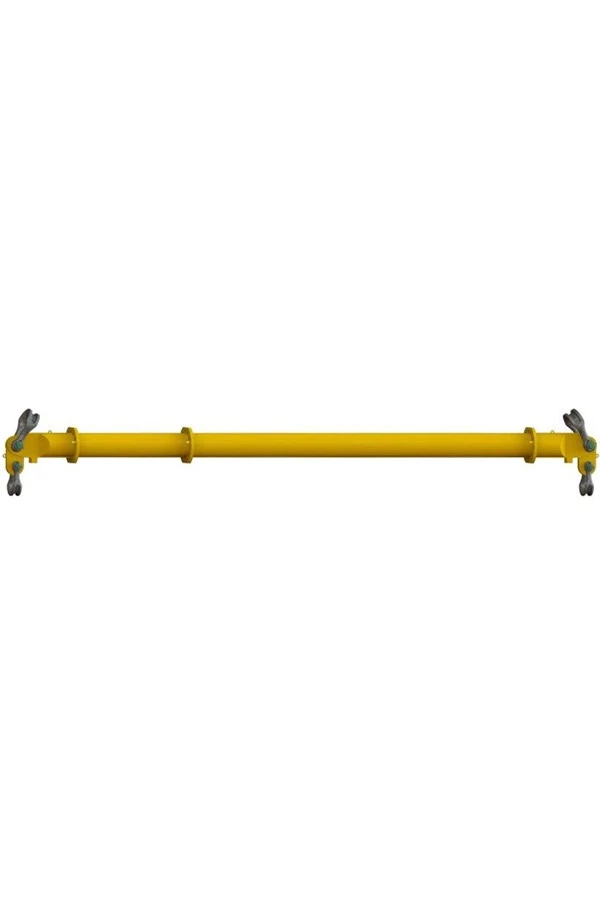

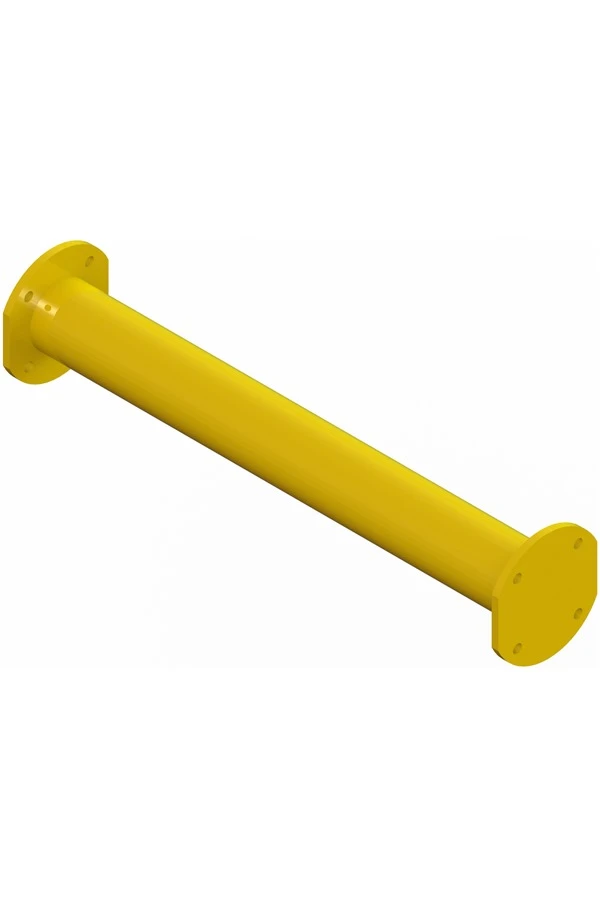

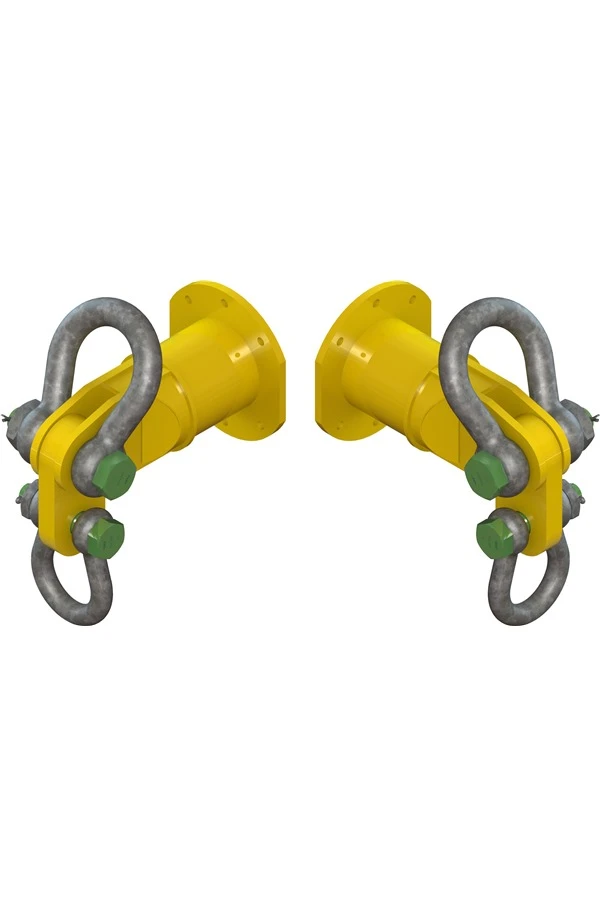

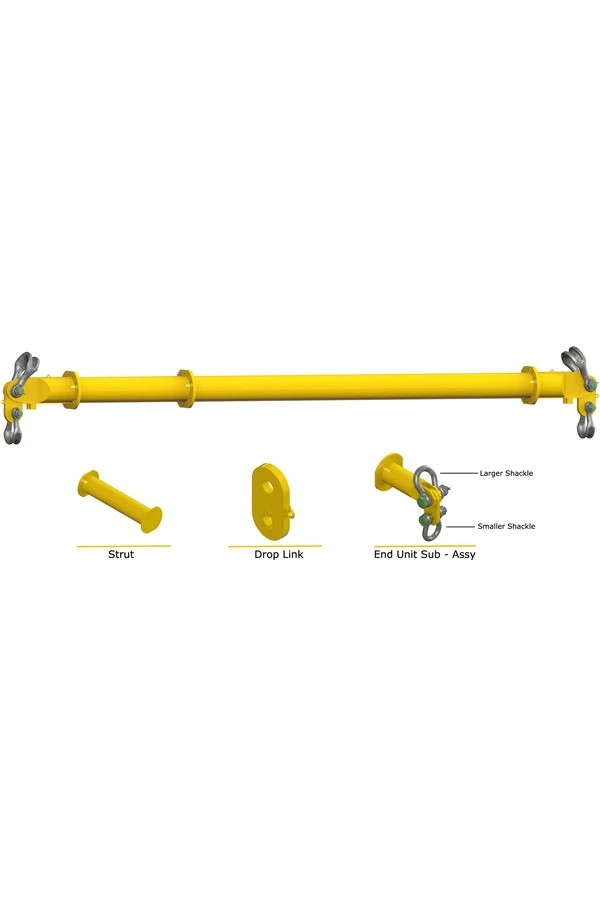

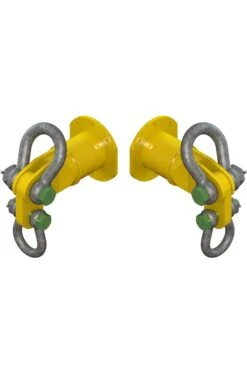

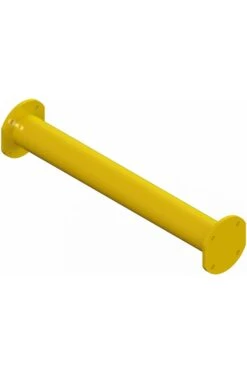

The MOD70 Spreader Beam consists of 1x pair of 500mm End Units and Drop Links, 2x 55ton Alloy Bow Shackles and 2x 35ton Alloy Bow Shackles, with intermediate struts that can be bolted into the assembly to achieve different spans (, please see below for configurations (different configurations and extra struts are available, please contact our sales team for more information):-

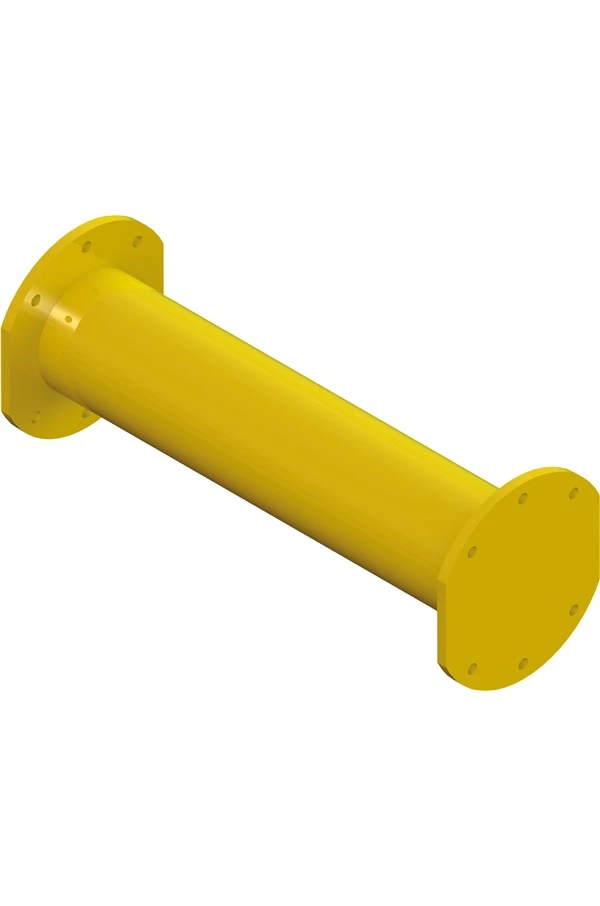

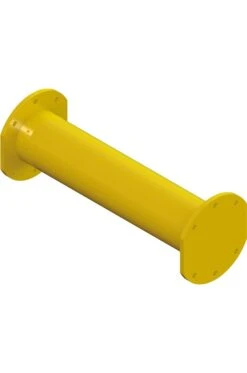

– 2x 500mm End Units, 1x 1000mm strut

– 2x 500mm End Units, 1x 2000mm strut

 – 2x 500mm End Units, 1x 2000mm strut, 1x 1000mm strut

– 2x 500mm End Units, 1x 4000mm strut

 – 2x 500mm End Units, 1x40000mm strut, 1x 1000mm strut

 – 2x 500mm End Units, 1x 4000mm strut, 1x 2000mm strut

 – 2 x 500mm End Units, 1x 4000mm strut, 1x 2000mm strut, 1x 1000mm strut

– 2x 500mm End Units, 2x 4000mm struts

 – 2x 500mm End Units, 2x 4000mm struts, 1x 1000mm strut

 – 2x 500mm End Units, 2x 4000mm struts, 1x 2000mm strut

– 2x 500mm End Units, 2x 4000mm struts, 1x 2000mm strut, 1x 1000mm strut

• Rated at 70tonne SWL at 9mtr span (30° ‘Sling to Vertical’ angle) –
• For 45° ‘Sling to Vertical’ angle – please see loading chart for SWL
• Fully certified and tested
• Used by many of the leading Rental and Crane Hire companies
• Lifting Slings sold separately – please see our Webbing Sling/Roundsling/Wire Rope Sling section for more details
• Available for hire at very competitive rates (please contact us)
