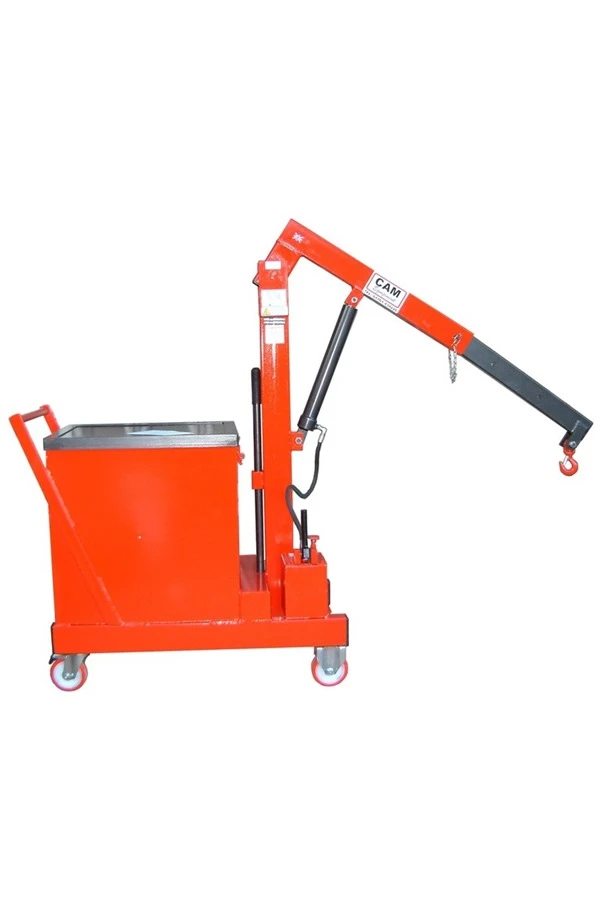

CTC-152 152kg Counterbalance Floor Crane

Counter-balanced Floor Cranes are really useful in machine shops and other manufacturing environments where access is restricted by floor level objects

This product also has the added advantage of not having extending legs that protude out to the front. This design overcomes the problem of lifting loads that are sitting on the floor without any footing room

Can be supplied with or without counterweights

Capacity position 1 = 152kg
Capacity position 2 = 102kg
Capacity position 3 = 76kg

• Individually Tested to 125% of Maximum Capacity
• Manufactured from hollow steel box section for combined strength and lightness
• Robust construction
• Heavy Duty Double Acting Pump For Fast Action
• Fitted With Overload Safety Valve
• Chrome Plated Piston on Both Ram & Pump
• 3 Position Extending Jib
• Heay duty swivel hook fitted with safety latch
• Fitted with hard wearing nylon front wheels and rear castor wheels for easy movement of crane when operational or folded
• 12month guarantee
• Fully certified
• Self weight of Crane (no counterweight): 135kg
• Counter balance weight required: 200kg
